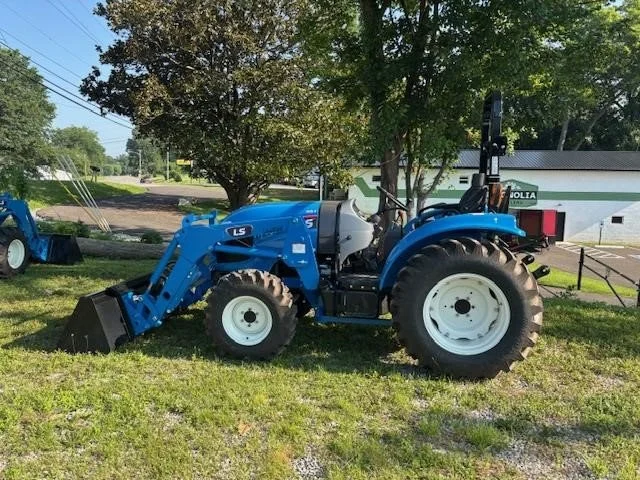

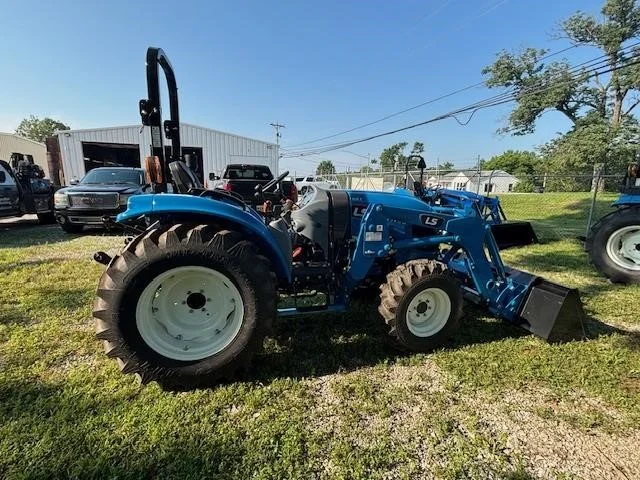

2025 LS MT357

S/N: 2354002676

Call for Pricing

Engine:

Type: 3-cylinder Liquid-Cooled Diesel TC CRDI

Model (Tier 4): L3C19-T

Engine HP (Gross): 57

PTO HP: 48.4 (Hydrostatic) / 45.6 (Gear)

Rated Speed (RPM): 2600

Displacement: 114.7 cu. In.

Fuel Tank Capacity: 10.6 gallons

Alternator: 12V, 70A

Drive Train:

Transmission: Synchro Shuttle / HST

Speeds: F16 x R16 (Gear) / 3 Ranges (HST)

Brakes: Wet Multi-disc

PTO:

Type: Independent

Rear RPM: 540

Hydraulic System:

Control System: Position/Draft

Implement Pump Flow: 8.2 gpm

Steering Pump Flow: 4.1 gpm (Gear) / 5.5 gpm (Hydro)

Total Flow: 12.3 gpm (Gear) / 13.7 gpm (Hydro) / 15.0 gpm (Hydro Cab)

Hitch Lift Capacity: 2755 lbs

Remote Valves: 2 pairs

Dimensions:

Overall Length: 133 in.

Wheelbase: 73.2 in.

Width: 62.5 in.

Height to Top of ROPS: 95 in.

Weight: 3869-4446 lbs (without ballast)

Tire Options:

Ag: 9.5-16 (Front) / 13.6-24 (Rear)

Industrial: 12-16.5 (Front) / 17.5L-24 (Rear)

Turf: 28×8.5-15 (Front) / 41×14-20 (Rear)

LOADER

Max Lift Height to Pivot Pin(in) (see A. dim left) 94.4 104.3

Clearance with Attachment Dump (in) 64.4 77.3

Reach at Max Height (in) 16.7 14.2

Max Dump Angle (deg) 52 46

Max Rollback Angle (deg) 41 42.5

Digging Depth (in) 4.3 4.8

Overall Height in Carry Position (in) 51.4 52.2

Lift Capacity (@ Pivot Pin, 1.5m height) (lbf) 2,878 2,998

Lift Capacity (@ Pivot Pin, Max height) (lbf) 2,633 2,396

Breakout Force (@ Pivot Pin) (lbf) 4,048 4,295
